Profibus PA/FF H1 Distributor
Introduction
Now, BFPD (101, 102... Topology connection mode.) the main – spur of the instrument and the most popular among. The trunk line, transport energy and data to the scene. And then distributed to each branch, The BFPD can fieldbus devices (PROFIBUS PA device or FF H1 device), such as measuring instrument, sensor, actuator is connected to the main line of Fieldbus through the branch cable, its installation in the field instruments near branch cable up to 120 meters, usually 60 meters.

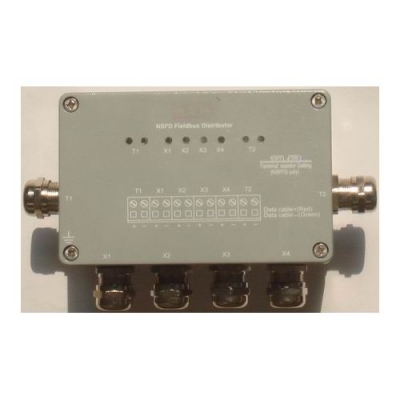

The BFPD series products are of three types: 101, 102, 103; each has two main lines of the interface of T1 and T2, 4 spur of X1, X2, X3, X4 interface port; waterproof casing with metal die-casting, protection grade is IP67, installation is simple and convenient, and has a ground terminal for NSPFD; with the BFPD products are 8 LED lights, indicating the operation state of port
Funcion
- Connection of field device (Profibus PA device or FF H1 device) for corresponding bus (PROFIBUS PA or FF H1)
- Automatic termination resistor (103) or a built-in switch-setting termination resistor (102, 101)
- Spur port fault · isolation (103, 102)
- Connection of isolated spue port after fault rectification (103, 102)
- 2 cable glands for the main line
- 4 cable glands for field device
- Connection of the main line and the spur lines via the cage-clamp method (103, 102)
- Revers polarity protection connections
- Port status indicator (103, 102)
- Power supply via the bus
- Screw gland on substrate or mount with adapter on mounting rail
- Degree of protection IP66 ·
- Grounding terminal outside
|
Model |
Description |
|
BFPD101 |
Economic type distributor for FF H1 or PROFIBUS PA, which can set terminal resistance, has two main lines of the interface of T1 and T2, 4 spur of X1, X2, X3, X4 interface port; waterproof casing with metal die-casting, protection grade is IP67, installation is simple and convenient |
|
BFPD102 |
Standard bus distributorfor for FF H1 or PROFIBUS PA,Spur port protection function distributor ,LED indicate the working status of each port, has two main lines of the interface of T1 and T2, 4 spur of X1, X2, X3, X4 interface port; waterproof casing with metal die-casting, protection grade is IP67, installation is simple and convenient |
|
BFPD103 |
High performance bus distributorfor FF H1 or PROFIBUS PA,Trunk cable short circuit protection,Automatic terminal resistance function,Spur port protection function distributor,LED indicate the working status of each port, has two main lines of the interface of T1 and T2, 4 spur of X1, X2, X3, X4 interface port; waterproof casing with metal die-casting, protection grade is IP67, installation is simple and convenient |
Technical Specification:
Power loss:......................................................250 mW
Trunk:
Rated voltage:........................................12~ 32 V DC
Rated current:........................................ <= 3A
Outputs(102,103)
Rated voltage:....................................... <= DC31V
Rated current:....................................... <= 40 mA
Short-circuit current............................... about 55mA
Power failure bypass…………………… 5ms
Current consumption............................. max. 20 mA(NSAFD)
Current consumption............................. max. 8 mA(NSPFD)
Terminating impedance......................... 100 OHM
Overvoltage protection.......................... typ. 39 V
Status,LEDs
Status main line T1,T2………………….. Green LED
No connected main line T1,T2…………. Not lit
Error main line T1,T2……………………. Red LED
Status spur line X1 to X4…..…………… Green LED
Error spur line X1 to X4……………..….. Flash green LED
No connected spur line X1 toX4……….. Not lit
Ambient conditions
Ambient temperature............................ -40~70 °C
Storage temperature ............................ -40~85 °C
Mechanical data
Connection type: .................................. Screw termina,removable
Core cross-section: .............................. < 2.5 mm2
Dimension W*H*D(mm)………………... 120 * 57 * 80
Weight……………………………………. Abort 700g
