ControlNet Repeater

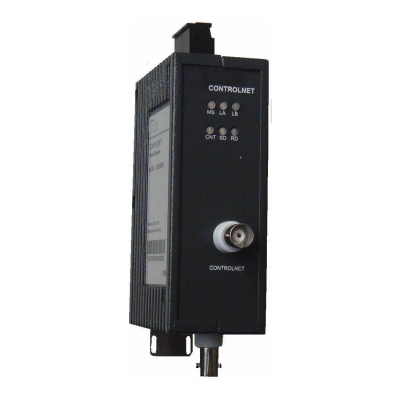

ControlNet Protocol Repeater(Bridge)

The ControlNet Repeater are designed to be used in controlnet field bus cable segments,provide a link connection between two controlnet segments. The Repeater contains two electrical interface for controlnet .The electrical port of the Repeater has the same network connections, specifications and restrictions as other controlnet devices, and must be treated accordingly.

The ControlNet Repeater device is powered by 24V DC voltage. A redundant feed increases operational safety.

For The ControlNet Protocol Repeater using protocol repeater transmission technology, the modules can be connect controlnet cable segments ,You require a repeater in the following situations:

--When there are more than 32 stations (including repeaters) connected to the bus

--When electrically isolated bus segments are required or

--When the maximum cable length of a segment is exceeded

6 multicolored LED indicate the current operating status



Technical Data



Voltage/power supply

Operating voltage 12 V to 30 V DC, typ. 24 V,

Current consumption typ. 120 mA@24V

Signaling contact Max .switch DC24V@2A or This email address is being protected from spambots. You need JavaScript enabled to view it.

Signal transmission

Transmission rate CONTROLNET rate

Bit error rate < 10-9

Delay time valus 930ns/station

Retimer (Electrical port)

Input Signal distortion ±30 %

Bit length ±0.12 %

Output Mean bit length ±0.01 %

Cascade modules 3

Electrical port

Input/output signal CONTROLNET

Isolate voltage >= 1500VDC

PIN assignment BNC

Electromagnetic compatibility (EMC)

Limit class B (EN 55022) EN 61000-4-2

EN 61000-4-3

Burst:

On power supply lines

shielded RS 485 bus lines



±2 kV (EN 61000-4-4)

Surge

Power lines,Cable lines

±1 kV symmetrical,±2 kV asymmetrical (EN 61000-4-5)



Others

Ambient temperature -25 °C to +75 °C

Storage temperature 40 °C to +85 °C

Relative humidity <95 %, non-condensing

Protection class IP 40

Dimensions (W x H x D) 62 x 132 x 120 mm

Weight approx. 600 g
