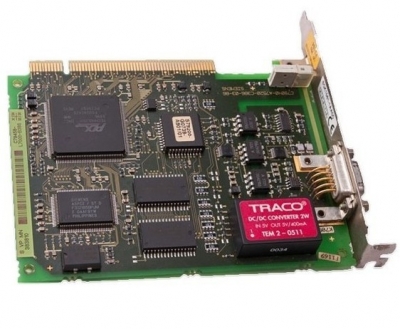

CP5611 communications cards for industrial applications, optical isolation design
The RS485 port increased by lightning surge protection circuit and overcurrent protection of self-healing, all use industrial-grade chips for a wide temperature range, for the realization of PC or PG and the SIMATIC networks of PROFIBUS DP / MPI / PPI communications link.
The RS485 port increased by lightning surge protection circuit and overcurrent protection of self-healing, all use industrial-grade chips for a wide temperature range, for the realization of PC or PG and the SIMATIC networks of PROFIBUS DP / MPI / PPI communications link.
Communication Services:
PROFIBUS-DP master class 1 and 2
PROFIBUS-DP slave with SOFTNET-DP slave
MPI / PPI communication
PG / OP communication
And SOFTNET-S7 for S7 communication
And SOFTNET-DP or SOFTNET-S7 to S5 compatible communication (based on the FDL interface SEND / RECEIVE function)
PROFIBUS-DP master class 1 and 2
PROFIBUS-DP slave with SOFTNET-DP slave
MPI / PPI communication
PG / OP communication
And SOFTNET-S7 for S7 communication
And SOFTNET-DP or SOFTNET-S7 to S5 compatible communication (based on the FDL interface SEND / RECEIVE function)
CP5611 apply to the following software:
STEP7 V.52 and above
SOFTNET-S7
SOFTNET-DP
SOFTNET-DP slave
COM PROFIVUS V3.3 and above
STEP 7-Micro/WIN V3.1 and above
ProTool, ProToo / Pro
NCMPC
STEP7 V.52 and above
SOFTNET-S7
SOFTNET-DP
SOFTNET-DP slave
COM PROFIVUS V3.3 and above
STEP 7-Micro/WIN V3.1 and above
ProTool, ProToo / Pro
NCMPC
Since the resumption of over-current protection: RS485 port can withstand voltages up to 60V due to continuous over-current
RS485 port with a lightning surge protector, repeatable surge capacity: Ipp = 100A (10/700us, 4KV)
Specification:
|
Transfer Rate
|
9.6Kbps-12Mbps,corresponding to the maximum communication
|
|
Interface
|
Connection PROFIUBS/MPI/PPI,isolated –pin Sub-D socket
|
|
Isolation Voltage
|
10000VDC
|
|
Repeatable surge capacity
|
Ipp=100A(10/700us,4kv)
|
|
Standard
|
IUT-TK20/21,VDE 0433,+ 15KV ESD protection
|
|
Since the resumption of over-current protection
|
RS-485 prot can withstand votages up to 60V due to continuous over-current
|
|
Connecting PG/PC
|
PCI 2.1 standatd slot
|
|
Standdard Voltage
|
+5VDC
|
|
Power
|
2.0w
|
|
Operating temperature
|
-20-+70C
|
|
Dimensions
|
102mm x 130mm
|
