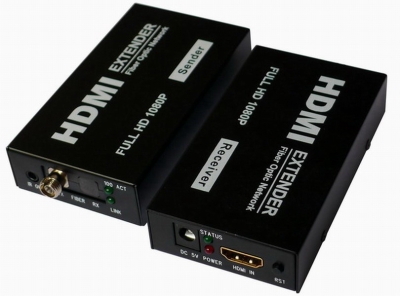

HDMI Video Optical Converter(HFB-FO-V-HDMI)
- Full digital non-compression broadcast level transmission;
- point -to-point, cascade connected, distributed network connection supported, and with steady SNR;
- level 3 lightning protection;
- free of cross interference resulted from FM/PM/AM optical transmitter and receiver;
- 1080P high resolution HD audio and video signal;
- Lossless video regeneration & relaying supported;
- super optic dynamic range and free of adjustment prior to use;
- surface coating technique;
- fiber optic WDM/CWDM/DWDM technique;
- 1000 M optical fiber transmission, easy for update;
- industry level ultra-broad temperature range (-40°C~+85°C), adaptable to various environments;
- on-power hot plug;
- wall-mounted or 2U rack-mounted;
- user's customization and OEM supported.
2, Specifications:
|
HDMI High-Definition Digital Video Optical Transmitter and Receiver |
|||
|
Technical Parameters |
|||
|
Number of VideoChannels |
1 channel |
||
|
Video Bandwidth |
TMDS MAX 10.8GHz |
||
|
HDMI version |
1.0~1.2a,1.3 1.4 |
||
|
Color depth |
TMDS MAX 48bit/px |
||
|
Supported VideoFormats |
MAX 1080P@1920x1080/60Hz |
||
|
Differential Gain |
<1% (typical) |
||
|
Differential Phase |
<0.6° (typical)"1" |
||
|
Video Interface |
HDMI A Type |
||
|
Optical FiberIndexes |
Optical Port: FC (optional) Single-Mode:0~100KM Wavelength: 1310/1550nm |
||
|
Expanded Options |
|||
|
Data Channel |
RS485 (reverse) /422/RS232 and NRA/RZI/Manchester supported Physical Interfaces: Standard industrial terminal Operating Mode: Simplex Transfer Rate 0 to 400Kbps Error Rate < 10-9 |
||
