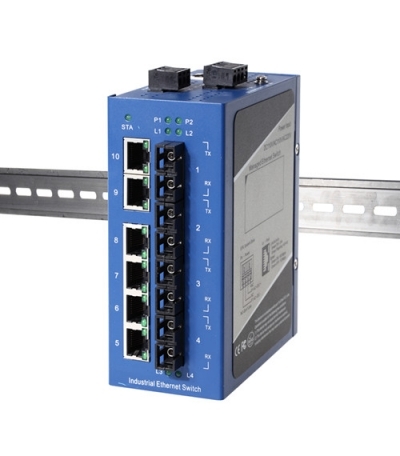

DIN-rail Gigabit Unmanaged Industrial Ethernet Switches
* Up to 4 Gigabit Combo Ports
* Elastic configuration, 100Base fiber port with SC/ST
connectors, multi-mode/single-mode models are available
* Multiple power inputs include low voltage redundant
power models and 220VAC models
* Broadcasting Storm Controller
Specifications
* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X) and 100BaseFX
IEEE802.3ad 1000Base(X)
IEEE802.3z 1000BaseSX/LX/HLX/ZX
IEEE802.3x Flow Control
Broadcasting Storm Control:Automatic
Flow Control:Full/Half Duplex Back Pressure Flow Control
* Interface
RJ45 Port Connectors:10/100Base(X) or 10/100/1000BaseT(X) Auto-Negotiation
Fiber Port Connectors:1000BaseSX/CX/LHX/ZX(SFP slots, LC connectors)
LED Indicators:Power, Port Status, 10/100/1000M
* Power Requirements
Low Voltage Range:12~36VDC; 10~24VAC
High Voltage Range:200~350VDC; 165~265VAC
Connection:Standard 4 Pin Dual Power Connector
* Optical Fiber
|
Mode |
Typical Dist |
Wavelength |
Cable Size |
TX Power |
Rx Sensitivity |
Transmission speed |
|
Multi |
2km |
1310nm |
62.5/125um |
-23.5~-14dBm |
< -35dBm |
10/100/1000Mbps |
|
Single |
15km |
1310nm |
9/125um |
-15~-8dBm |
< -35dBm |
10/100/1000Mbps |
* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):
HFB10-2G:89×144×125mm
HFB18-2G:70×149×130mm
HFB28-4G:91×166×130mm
DIN Rail or Panel Mounting
* Environment Limits
Standard Temp Models:-10℃ to 60℃
Extended Temp Models:-40℃ to 75℃
Storage Temperature:-40 to 85℃
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMC:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
* Warranty
Warranty Period:5 years
* Ordering Information
|
Product Model |
Connectors |
|||||
|
Standard Temperature Models(-10℃~60℃) |
Extended Temperature Models(-40℃~75℃) |
10/100/ |
10/100 |
100BaseFX |
||
|
Multi-mode, SC Connectors |
Single-mode, SC Connectors |
|||||
|
HFB10-2G Series |
||||||
|
HFB10-2G |
HFB10-2G-W |
2 |
8 |
|
|
|
|
HFB10-2G-2SC |
HFB10-2G-2SC-W |
2 |
6 |
2 |
|
|
|
HFB10-2G-2SSC |
HFB10-2G-2SSC-W |
2 |
6 |
|
2 |
|
|
HFB10-2G-4SC |
HFB10-2G-4SC-W |
2 |
4 |
4 |
|
|
|
HFB10-2G-4SSC |
HFB10-2G-4SSC-W |
2 |
4 |
|
4 |
|
|
HFB18-2G Series |
||||||
|
HFB18-2G |
HFB18-2G-W |
2 |
16 |
|
|
|
|
HFB18-2G-2SC |
HFB18-2G-2SC-W |
2 |
14 |
2 |
|
|
|
HFB18-2G-2SSC |
HFB18-2G-2SSC-W |
2 |
14 |
|
2 |
|
|
HFB18-2G-4SC |
HFB18-2G-4SC-W |
2 |
12 |
4 |
|
|
|
HFB18-2G-4SSC |
HFB18-2G-4SSC-W |
2 |
12 |
|
4 |
|
|
HFB28-4G Series |
||||||
|
HFB28-4G |
HFB28-4G-W |
4 |
24 |
|
|
|
|
HFB28-4G-2SC |
HFB28-4G-2SC-W |
4 |
22 |
2 |
|
|
|
HFB28-4G-2SSC |
HFB28-4G-2SSC-W |
4 |
22 |
|
2 |
|
|
HFB28-4G-4SC |
HFB28-4G-4SC-W |
4 |
20 |
4 |
|
|
|
HFB28-4G-4SSC |
HFB28-4G-4SSC-W |
4 |
20 |
|
4 |
|
|
HFB28-4G-6SC |
HFB28-4G-6SC-W |
4 |
18 |
6 |
|
|
|
HFB28-4G-6SSC |
HFB28-4G-6SSC-W |
4 |
18 |
|
6 |
|
* All fiber cables can be equipped with ST connectors
* Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km
* The standard models are powered by 24VDC, 220VAC custom models are also available
