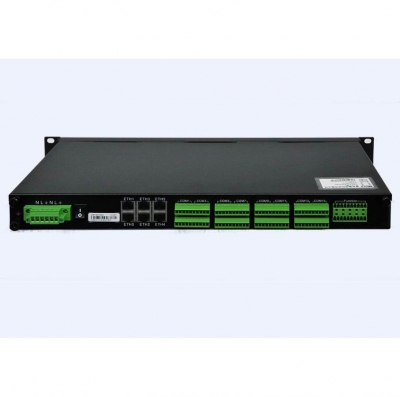

Substation Communication Gateway(Industrial PC)
8016 series 1U rack substation embedded computer for substation communication can provides both industrial communication device and solution of the whole power and industrial automation system,which plays more important roles in industrial control and automation,especially in the substation automation.
1.Protocols it can support:
UCA2,TCP/IP, DNP3, OPC, Modbus RTU,RS-232,RS-485/422,Modbus TCP, IEC60870-5 series(IEC101,IEC102,IEC103,IEC104), IEC61850,NTP/SNTP,IRIG-B and other substation communication protocols.
Feature：
400Mhz Freescale MPC8308 CPU
128M DDR2 Memory
128M Nand Flash
6 Ethernet Ports
16 RS-232/485 Isolation Serial Ports
AC85~265V Input
Specifications:
|
System |
|
|
CPU |
Freescale MPC8308 PowerPC CPU,400MHz |
|
Memory |
DDR2 128M |
|
Flash |
8M NorFlash |
|
128M NandFlash |
|
|
Operating System |
Linux 2.6.29.6 |
|
|
|
|
LED |
|
|
8016 |
System:Power x1,RUN x1,PWR1 Alarm x1,PWR2 Alarm x1 LAN:Link x6 & Act x6 Indicators Serial Port:Transfer x16 & receive x16 Indicators Function LED:2 x4 Indicators |
|
Others |
RTC,Buzzer,Watchdog Timer,Reset button,Console Port x1 |
|
Serial Communication |
|
|
Console Port |
Console Port DB9 connector x1 RS232 115200Bps N,8,1 |
|
Serial Port |
16 x RS-232/485 TB Interface connector Software Mode select RS-232 Signals：TXD,RXD,GND RS-485 Signals：485A(Data+),485B(Data-) Baud:300～115200Bps |
|
Protection |
Built-in 15KV ESD protection for all signals, 2KV iCoupler digital isolation protection |
|
Network Communication |
|
|
LAN |
|
|
8016 |
Auto-sensing 10/100/1000Mbps x 2, RJ45 Auto-sensing 10/100Mbps x 4, RJ45 Build-in 2KV iCoupler digital isolation protection |
|
Optional |
|
|
Digital Input Port |
4 x Isolation Input VL:≦80V VH:>85V |
|
Digital Output Port |
4 x Relay Output VL:≦80V VH:>85V |
|
CAN Port |
CAN2.0B(Isolation protection) Baud:5Kbps～1Mbps |
|
IRIG-B Port |
RS-485(Isolation protection) Precision:±1us |
|
Power Requirements |
|
|
Power Input |
Dual Power Input Design PWR1: 85~265VDC or 100~265VAC PWR2: 85~265VDC or 100~265VAC |
|
Lost power alarm |
Relay empty node(Limited to single power) Power alarm indicators |
|
Power Consumption |
|
|
|
10W@220VAC |
|
Mechanical |
|
|
Dimensions |
483(L)x226.7(W)x44(H)（Maximum size） |
|
Installation |
Rack Mount 1U |
|
Environmental |
|
|
Operating Temperature |
-20-60℃ |
|
Storage Temperature |
-30-80℃ |
|
Regulatory Approvals and Warranty |
|
|
EMC |
GB/T 17626.2-2006 Class 4 GB/T 17626.4-2008 Class 4 GB/T 17626.5-2008 Class 4 GB/T 17626.6-2008 Class 3 |
|
Warranty |
5 Years |
