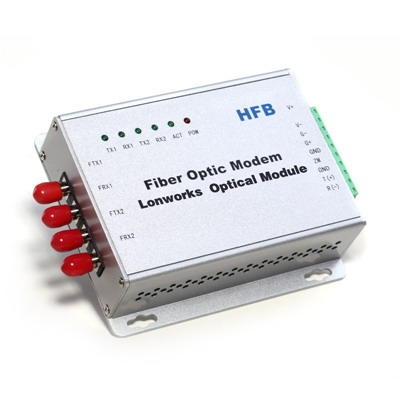

Lonworks(LON Talk) Multi-drop Bus Fiber Optic Converter
The Lonworks Multi-drop bus Fiber Optic Converter(Modem) is a multi-master and high performance Field bus Control System (FCS). Our Fiber Optic Modem uses the fiber cable as its transmission medium and utilizes Optical Fiber modulation/demodulation technology to changes the electric medium into a light medium transmission.
The Lonworks Multi-drop bus Fiber Optic Converter(Modem) product eliminates many of the disadvantages of copper cable. Examples of these disadvantages are EMI/RFI, ground loops (electrical isolation with fiber), high attenuation (high signal loss), short transmission distance between nodes of a system, and potential lightning damage.
The Lonworks Multi-drop Bus Fiber Optic Converter(Modem) can be widely used, such as Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking, Supervisory Control and Data (SCADA) and so on.
Parameters:
| Data | |
| Data Formats | LONWORKS(LonTalk) |
| lLONWORKS Data Rate | 78kbps |
| Bit Error Rate | < 1 x 10-12 |
| Connectors | |
| Data | Screw Block Terminal |
| Fiber | ST, SC or FC (ST fitted as standard) |
| Environmental | |
| Operating Temperat ure | - 3 0 C--- +70 C |
| Storage Temperature | - 40 C--- +90 C |
| Operating Humidity | 0- 95% |
| MTBF | > 100, 000 Hours |
| Optical | |
| Fiber | Multi mode or Single mode |
| Wavelength | MM: 850nm, SM: 1310nm |
| Number of fibers | 2 or 1 |
| POWER | |
| Power Input | AC 220V 110v or DC+110V +5V +12V +24V +48V Option |
| Mechanical | |
| Dimensions | 125(L)× 110(W)× 36(H )Wall Mount & DIN Rail |
Ordering information:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFB-FO-LON-M2M |
Multi point Bus Link,Dual Fiber(BI-DI), 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFB-FO-LON-M4M |
Multi point Bus Link,4 Fiber, 2km |
4 |
Multi Mode |
ST/SC/FC |
|
HFB-FO-LON-M2S |
Multi point Bus Link,Dual Fiber(BI-DI), 20km |
2 |
Single Mode |
ST/SC/FC |
|
HFB-FO-LON-M4S |
Multi point Bus Link,4 Fiber, 20km |
4 |
Single Mode |
ST/SC/FC |
